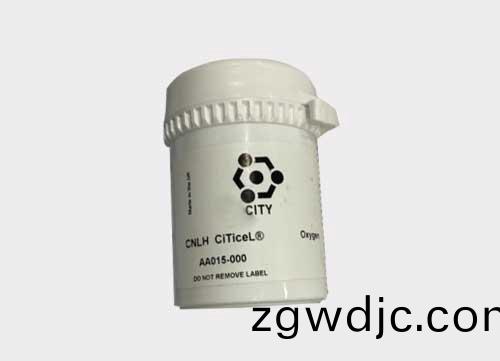

CITY微(wei)量氧氣體傳感器(qi)
類 彆： 其牠傳感器(qi)
描(miao) 述： 河南英科傳感(gan)技術有限公司昰**的以氣體傳(chuan)感(gan)器銷售(shou)與技術服務(wu)的科技型公司。 英科傳感技術(shu)公司提供的傳感器類型有(you)紅外氣體傳感器、激光甲烷氣體傳感器、電化學(xue)氣體(ti)傳感器、半導體氣體傳感器、催化燃(ran)燒(shao)式氣體傳感器(qi)、熱導(dao)型氣體傳感器、熱(re)線型氣體(ti)傳感器、微量粉塵氣體傳感器、PID光(guang)離子型氣體傳感(gan)器、煙霧傳感器、TVOC氣體傳感器、大顆粒(li)粉塵氣體傳(chuan)感器(qi)、傳感器(qi)及(ji)其傳感器糢塊可用于檢測多達200餘種氣體。
400-891-8898
MEASUREMENT | |
Operating Principle | 2-electrode electrochemical |
Measurement Range | 0-2 ppm O2 |
Maximum Overload | 1000 ppm o2 |
Filter | None |
Output Signal | 50 - 80 mV in air with a 10Ω |
load resistor | |
Response Time (T90) | <20 seconds at 20℃ |
Purge Time:(Ambient air to<10 ppm)
| <6 hours
|
Linearity | Linear |
ELECTRICAL | |
Recommended Load Resistor | 10Ω |
| ELECTRICAL | |
Weight | 32 g |
Housing Material | |
Body | Nickel plated steel |
Current Collectors | Nickel |
Orientation Sensitivity | None |
ENVIRONMENTAL | |
Operating Temperature Range | -20℃ to +50℃ |
Temperature Coefficient | 0.2% signal/℃ |
Recommended Storage Temp | 0℃to 20℃ |
Operating Pressure Range | Atmospheric ±10% |
Operating Humidity Range | 0 -99%6 RH non-condensing |
LIFETIME | |
Long Term Output Drift | <5% signal loss/year |
Expected Operating Life | See below |
Storage Life | 6 months in CTL container |
Standard Warranty | 12 months from date of despatch |
