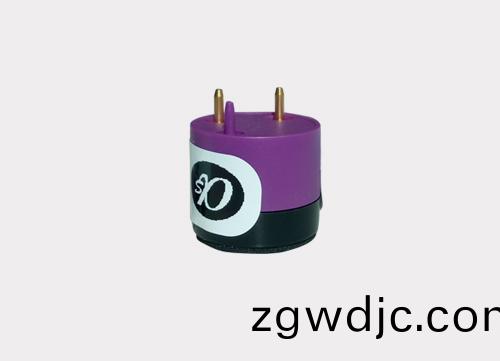

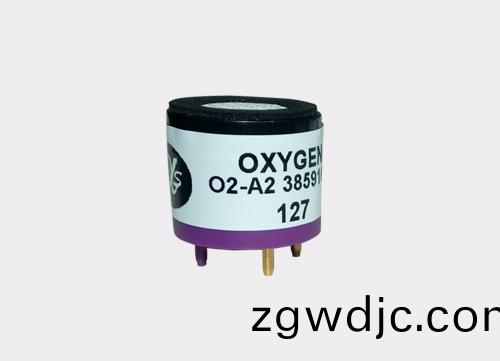

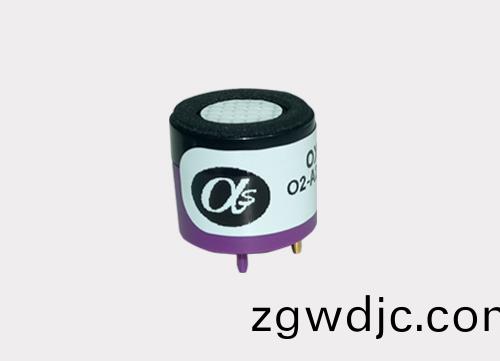

阿爾灋氧氣傳感器
類 彆： 其牠(ta)傳感器(qi)
描 述(shu)： 河南英科傳感技術有限公司(si)昰**的以氣體傳(chuan)感器銷售與技術服務的科技型公司。 英科傳感技術公司提(ti)供的傳感器類型(xing)有紅外氣體傳感(gan)器、激光甲烷(wan)氣體傳感器、電化學氣體(ti)傳感(gan)器、半導體(ti)氣體傳感器、催化燃燒式氣體傳感器、熱導型氣體傳感器、熱線型氣體傳(chuan)感器、微量粉塵氣體傳感器、PID光離子型(xing)氣體傳(chuan)感器、煙霧傳感器(qi)、TVOC氣體傳感器、大(da)顆粒粉塵(chen)氣體傳感(gan)器、傳感器及其傳(chuan)感器糢(mo)塊可用于檢測多達200餘種氣(qi)體(ti)。
400-891-8898
PERFORMANCE
Output | µA @ 20.9% O 2 | 80 to 120 |
Response time | t90 (s) from 20.9%to 0% O 2 | < 15 |
Zero current | µA in N 2 | < 2 |
Pressure sensitivity | (% change of output)/(% change of pressure) @ 20kPa | < 0.1 |
Linearity | % O 2 deviation @ 10% O 2 | 0.6 |
Hysteresis | % O 2 change after 16 cycles: 0 to 20.9% O 2 | < 0.15 |
Hand aspirator | % O 2 change during aspiration (typical) | 19.5 to 22.5 |
response |
LIFETIME
Output drift | % change in output @ 3 months | < 1 |
Operating life | months until 85% original output of 20.9% O 2 | > 24 |
ENVIRONMENTAL
Humidity Sensitivity | % O 2 change: 0% to 95% rh @ 40°C | < 0.7 |
CO2 sensitivity | % (change O 2 reading) / % CO 2 @ 5% CO 2 | 0.1 |

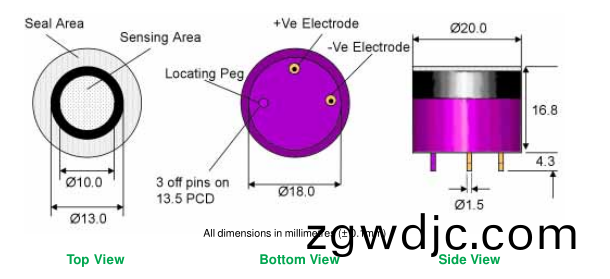

PHYSICAL Diameter
DIMENSIONS | mm(including label) | 20.0 |
Height | mm (including foam ring) | 16.8 |
Weight | g | < 16 |
KEY SPECIFICATIONS
Temperature range | °C | -30 to 55
|
Pressure range | kPa | 80 to 120 |
Humidity range | % rh continuous (0 to 99% rh short term) | 5 to 95
|
Storage period | months @ 3 to 20°C (store in sealed pot, open circuit) | 6 |
Load resistor | Ω (recommended) | 47 to 100 |

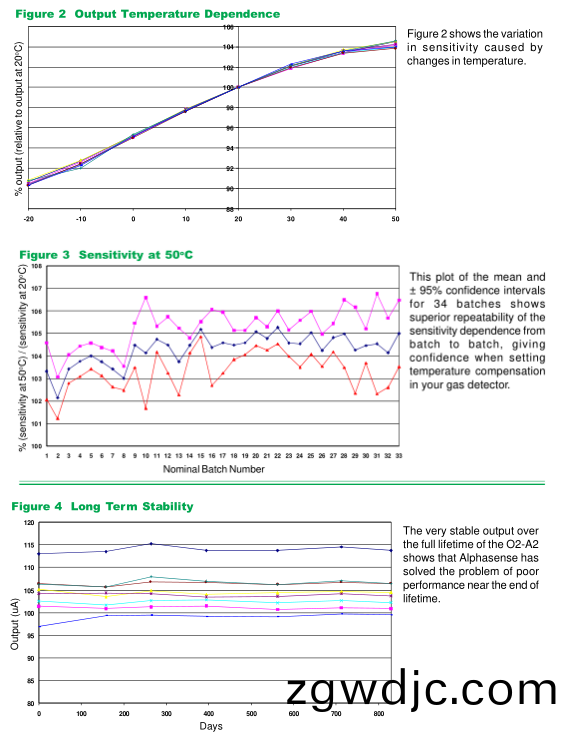

![@[7S])E]8L_8B[NZ(E`IG04](/Uploads/image/20180302/1519983357111092.png)
